| 1.7 Camera |
|
| Front& Rear Camera |
Front 5MP+Rear 13MP, support live video streaming |
| 1.8 Wi-Fi |
|
| IEEE802.11a |
Yes |
| IEEE802.11b |
Yes |
| IEEE802.11g |
Yes |
| IEEE802.11n |
Yes |
| IEEE802.11 a/c |
Yes |
| 1.9 Bluetooth |
|
| Version |
BT V5.0 |
| Power Level |
(Max) Class 2 |
| Operation distance |
(Max) 10 meter |
| 2.0 GPS & A-GPS |
|
| GLONASS Support |
Yes |
| GPS /AGPS Support |
Yes |
| Gallieo Support |
Yes |
| BDS |
Yes |
| 2.1 Speaker & MIC |
|
| Output |
2W speaker |
| SPL |
noise reduction |
| Receiver |
1506 |
| MIC Type |
Single Pole Mic |
| MIC Sensitivity |
-42dB±3 |
| SIM card |
TWO Nano-SIM card |
| Vibrator |
Yes |
| 2.2 USB |
|
| USB type |
TYPE C |
| USB |
Micro USB2.0 |
|
|
| Cable length |
1.0m |
| 2.3 Earjack Interface Type |
M6 pin connector for PTT Earphone and PTT Speaker
3.5MM Jack Earphone |
| 2.4 Indicator LED |
3-colors(Red, Green, Blue） |
| 3、MD |
|
| 3.1 Size |
|
| Height ( H * W * D ) |
155*75*18.5mm |
| Weight |
280g |
| IP code |
IP68 |
| Drop Test |
1.5m |

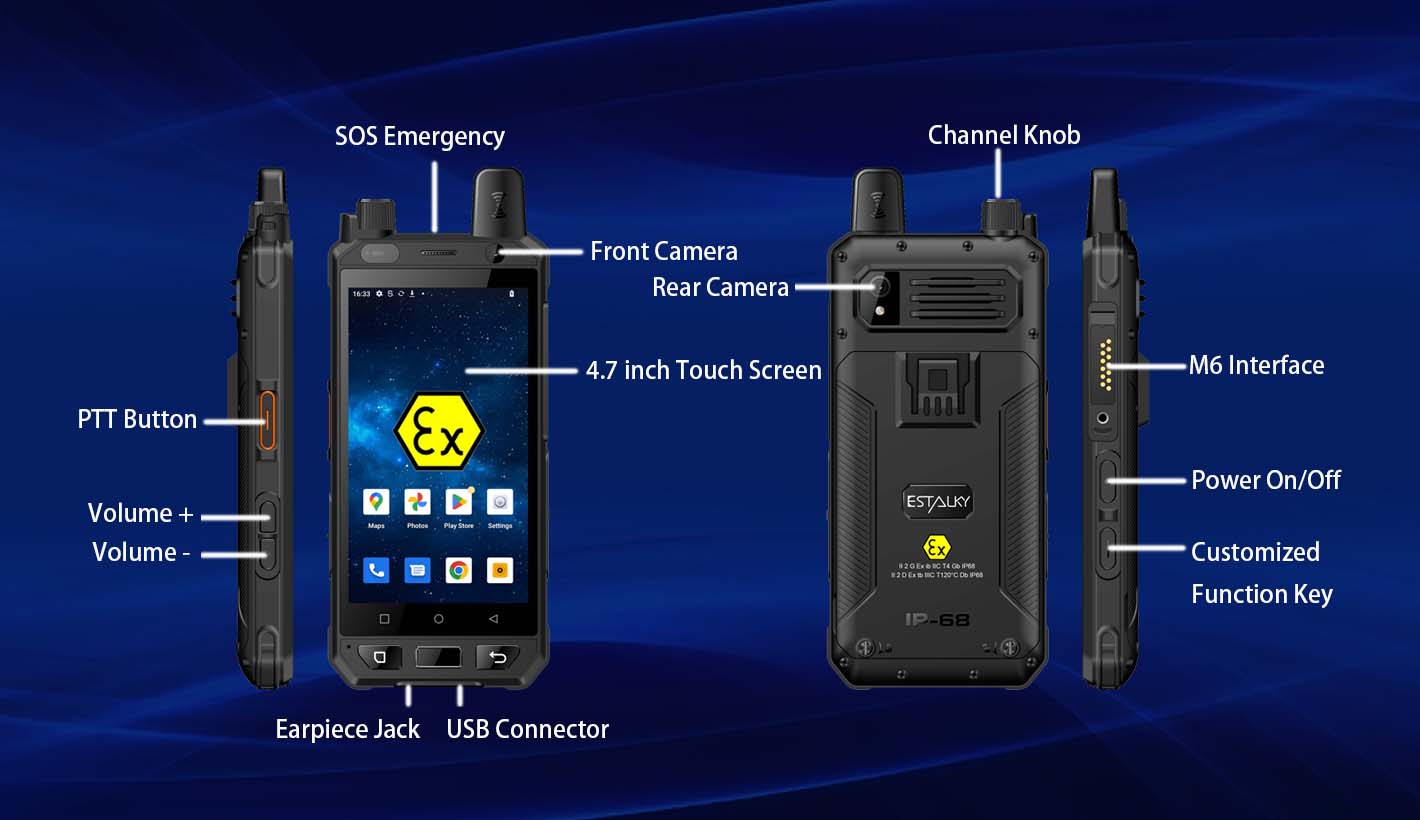

| 3.2 Key buttons |
|
| keys button |
PTT Key / Volume UP / Down Key / Function Key / SOS Key / Power Key/Channel knob/Fingerprint |
| 4、 Battery |
|
| Battery type |
Li-Po |
| Battery capacity |
3050mAh Explosion battery |
| Removable battery |
Yes |
|
|
| 5.1 Charging |
|
| Micro USB ( For Handset ) |
Yes |
| Battery charging terminal（For Cradle) |
Cradle charging |
| 5.2 Cradle Spec |
|
| Input voltage |
DC 5V/2.0A |
| Output voltage |
DC 5V/2.0A |
| Interface Type |
TYPE-C Connector |
| 5.3 Phone Adaptor Spec |
|
| Input voltage |
AC 100-240V, 50 / 60Hz, 0.3A |
| Output voltage |
DC 5V / 2.0A |
| Interface Type |
Standard USB |
| 6、 Environmental Conditions |
|
| Operating Temperature |
-20℃ ~ 60℃ |
| Storage Temperature |
-30℃ ~ 70℃ |
| Humidity |
20% ~ 90% |
| ESD |
Contact: ±8KV
Air: ±12KV |
| ROHS 6 Compliant |
Yes |
| 7、 Certification and safety spec |
|
| European |
CE |
| ATEX Certification |
II 2 G Ex ib IIC T4 Gb IP68 II 2 D Ex tb IIIC T120°C Db IP68 |
