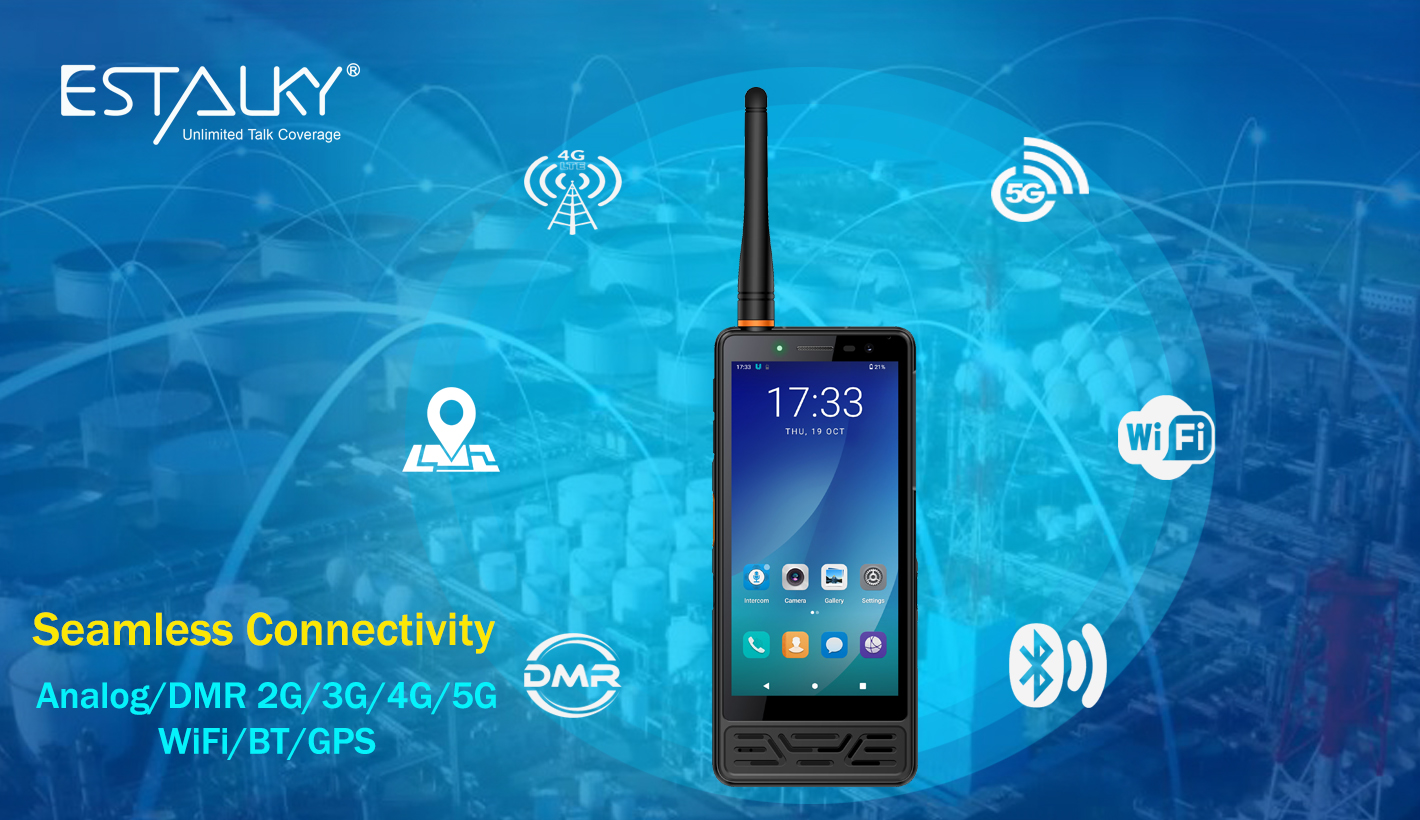

The V900D revolutionizes mission-critical communication by combining dual-mode 5G cellular connectivity with DMR 4W UHF/VHF support. Whether operating on ultra-fast 5G networks or traditional analog/digital radio frequencies, this powerhouse ensures seamless, crystal-clear communication in any environment. No dead zones, no compromises。
The V900D isn’t just a push-to-talk device—it’s a 5G-powered command center in your palm. Elevate productivity, safety, and situational awareness with the ultimate tool for modern frontline teams.

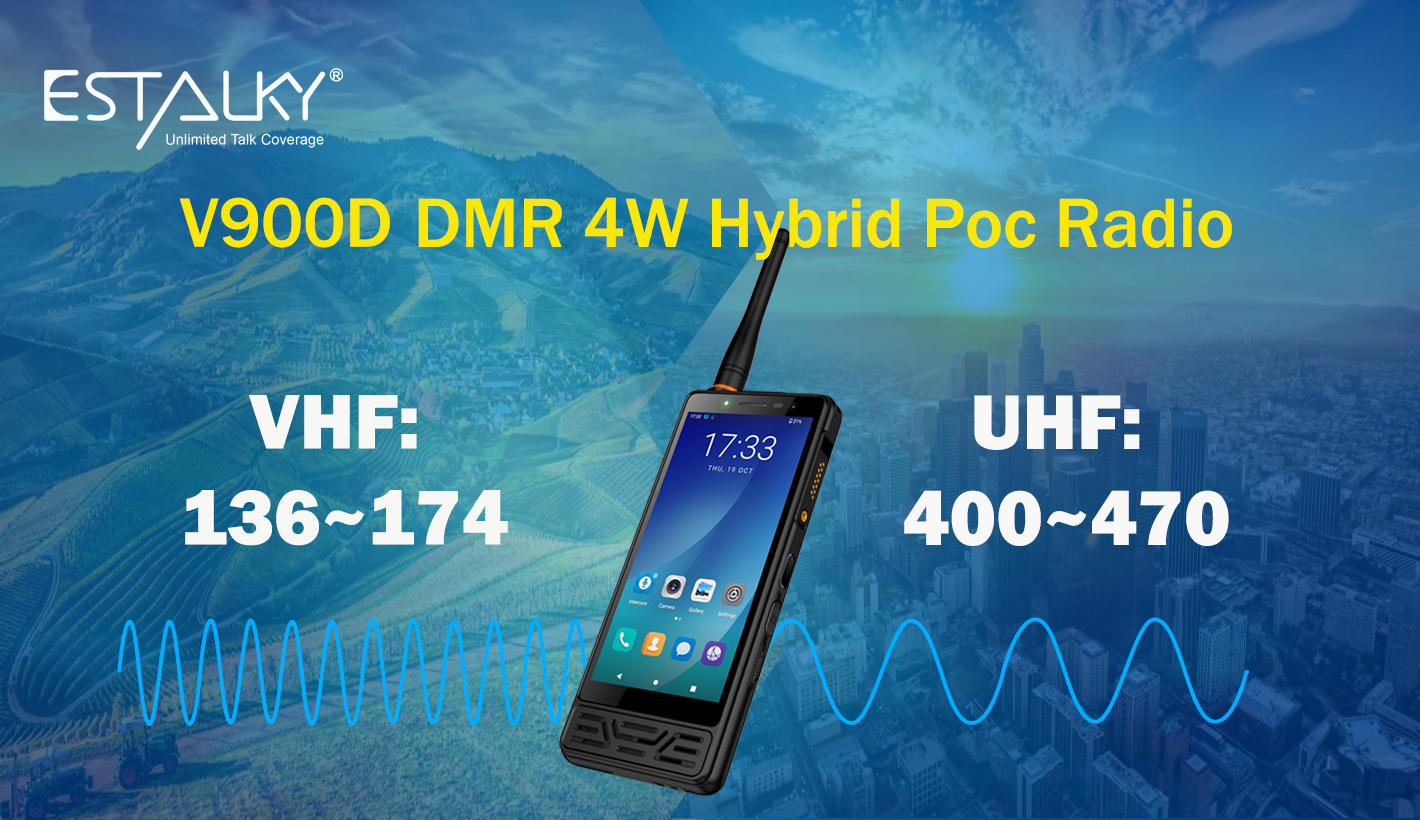

Estalky V900D support DMR 4W UHF(400~470) and VHF(136~174), it design with dual PTT buttons for DMR and Poc communication. V900D hybrid devices is android 12 OS with standard memory 8+256GB, it can also upgrade to 12+256 GB as project request. it has enough memory and fast cpu to run custom apps, GPS tracking, and real-time data workflows.
108MP Rear Camera: Capture forensic-grade photos/videos for incident reporting, asset inspections, or evidence collection.
Night Vision Capability: Dominate low-light operations with integrated IR illumination for clear imaging in pitch darkness.
| Feature | Technical Description | |
| 1、HW SPEC | ||
| 1.1 Main CPU & SW | ||
| CPU | Octa-core 2.4GHZ. 2xARM Cortex A78,6xARM Cortex A55 | |
| Android | Android 12 with GMS, Upgrading to Android 14 | |
| Language | Multi-Language | |
| 1.2 Memory | ||
| RAM+ROM | 8GB+256GB(optional memory 6+128GB or 12+256GB) | |
| SD Card | Up to 1TB | |
| 1.3 LCD | ||
| LCD | 5.7" Full Lamination | |
| LCD resolution | 1080*2160 | |
| LCD Colors | IPS G+FF | |
| 1.4 Touch | ||
| Touch type & size | G+F+F, Support glove wear touch | |
| Glass | Tempered Glass | |
| Multi-touch | Yes | |
| 1.5 Sensor | ||
| Sensor | Light Sensor , G-Sensor , 3D Sensor , Proximity Sensor,E-compass,Barometer | |
| 1.6 Frequency/Bands | ||
| Network ( GSM , WCDMA , FDD , TDD ) | GSM: Band 2/3/5/8 WCDMA:B1/B2/B5/B8 FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B12/B17/20/28 TDD:B34/B38/B39/B40/B41 5G NR:n1/n3/n5/n8/n28/n41/n77/n78/n79 |
|
| 1.7 Camera | ||
| Front& Rear Camera | Back:108MP AF +30MP+ Night vision camera Front:24M FF Flash Light:real light |
|
| 1.8 Wi-Fi | ||
| IEEE802.11a/b/g/n/ac/ax/k/r/v | Yes (2.4GHz/5GHz) | |
| WIFI 6 | Support | |
| 1.9 Bluetooth | ||
| Version | BT 5.2 | |
| 2.0 GPS & A-GPS | ||
| Frequency Range | UHF(400~470) Or VHF(136~174) | |
| Channel Capacity | 16 | |
| Transmitting Power | 1W/4W | |
| Channel Spacing | 12.5/25kHz( Analogue ) 12.5kHz ( Digital ) |
|
| 2.1 DMR | ||
| Frequency Range | UHF(400~470), VHF(136~174) | |
| DMR Encryption | AES128/256 | |
| Transmitting Power | 1W low/4W High Power | |
| Channel Spacing | 12.5/25kHz( Analogue ) 12.5kHz ( Digital ) |
|
| 2.2 Speaker & MIC | ||
| Output | 2.0W | |
| SPL | 102dB | |
| Receiver | 1506 | |
| MIC Type | Dual Mic With One Noise Reduction Mic | |
| MIC Sensitivity | -42dB±3 | |
| SIM card | Dual Nano - SIM card | |
| Vibrator | Yes | |
| Transmitting Power | 1W(low)/4W(High) | |
| 2.3 Earjack Interface Type | M6 Connector | |
| 2.4 Indicator LED | 3-colors （ Red 、 Green 、 Blue ） | |
| 3、MD | ||
| 3.1 Size | ||
| Height ( H x W x D ) | 177×79.6×19.5mm | |
| Weight | 380.3g | |

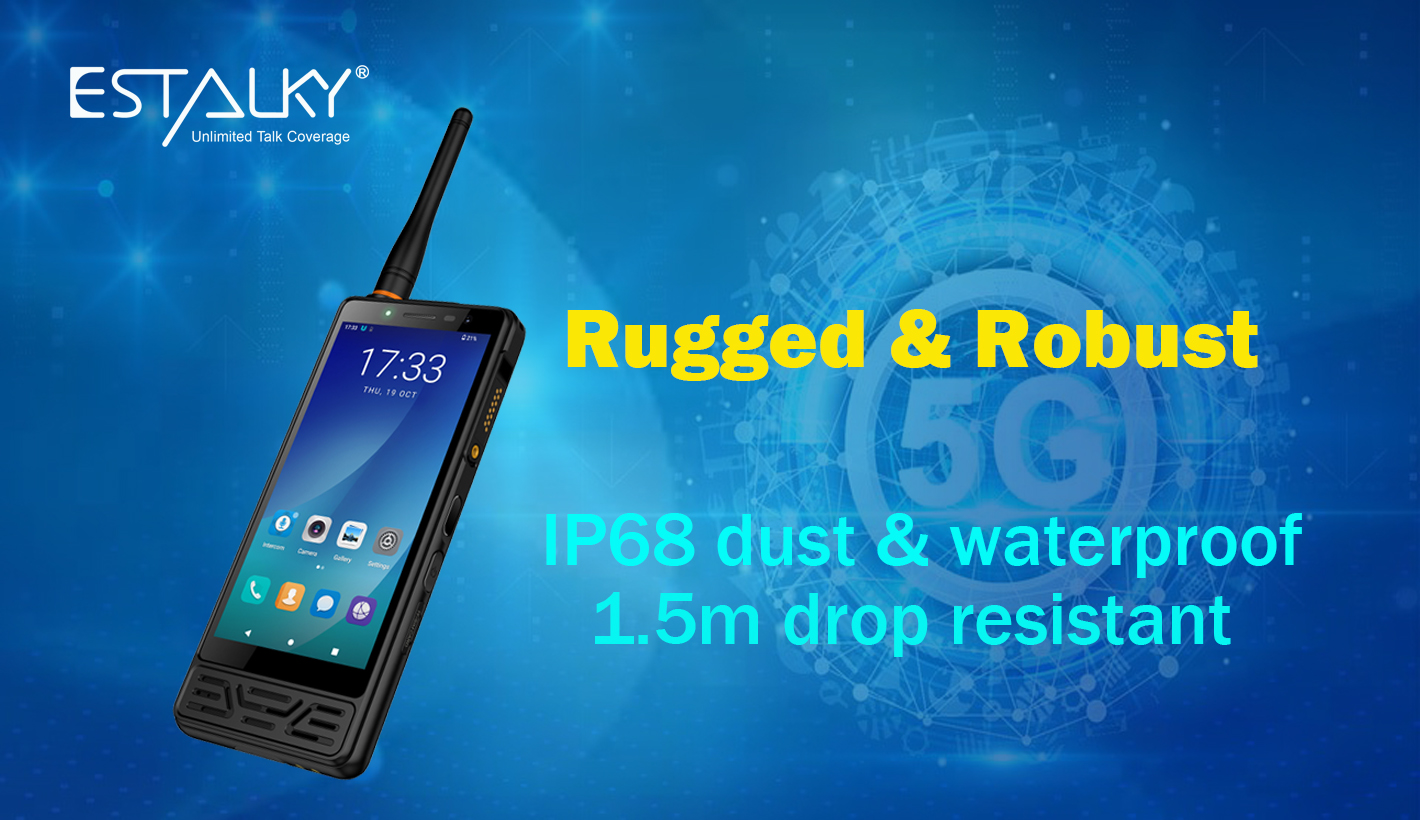

| IP code | IP68 | |
| Drop Test | 1.5m | |
| 3.2 Key buttons | ||
| keys button | Power, Volume+, Volume-，PTT，SOS,Torch.Fingerprint | |
| 4、 Battery | ||
| Battery type | Li-Po | |
| Battery capacity | 3000 mAh 7.7V | |
| Removable battery | Yes | |
| 5.1 Charging | ||
| Micro USB (For Handset) | Type C | |
| Battery charging terminal (For Cradle) | Support Customized Cradle | |
| 5.3 Cradle Spec | ||
| Input voltage | DC 9V / 2A | |
| Output voltage | DC 9V / 2A | |
| Interface Type | Type C | |
| 5.4 Phone Adaptor Spec | ||
| Input voltage | AC 100 ~ 240V | |
| Output voltage | DC 9V / 2.0A | |
| Interface Type | Type C | |
| 6、 Environmental Conditions | ||
| Operating Temperature | -20℃ ~ 60℃ | |
| Storage Temperature | -30℃ ~ 70℃ | |
| Humidity | 20 ~ 90% | |
| ESD | Contact: ± 8KV Air: ± 12KV |
|
| RoHS 6 Compliant | Yes | |
| 7、 Certification and safety spec | ||
| Europe | CE | |
| American | FCC |
