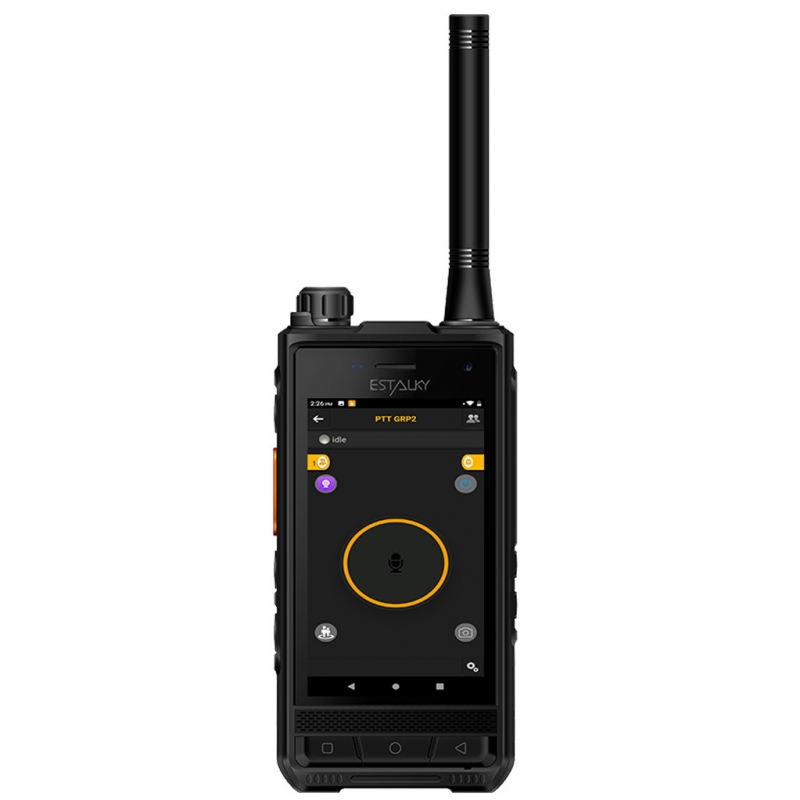

E966
Estalky E966 is an advanced push to talk Radio with multi-modes enables the collaboration of broadband and narrowband network.
E966 with M6 connector and Side Smart Key enables to connect with external RSM,Earphone and Body Camera.
Specail customized External body camera with infrared night vision function make E966 as professional body camera which allows PTT communication and video capturing simultaneous
Deploy big battery 4500mah maintain your working in safety and connection.
E966 multi mode poc radio embodied with cpu 2.0ghz which provide fast mission critical communication.
BROADBAND AND NARROWBAND CONVERGENCE

Estalky E966 is an advanced Push-to-Talk Radio with multi-modes enables the collaboration of broadband and narrowband network.
4INCH FULL GORILLA GLASS

4-inch industrial-grade HD touch screen can run Multiple application.

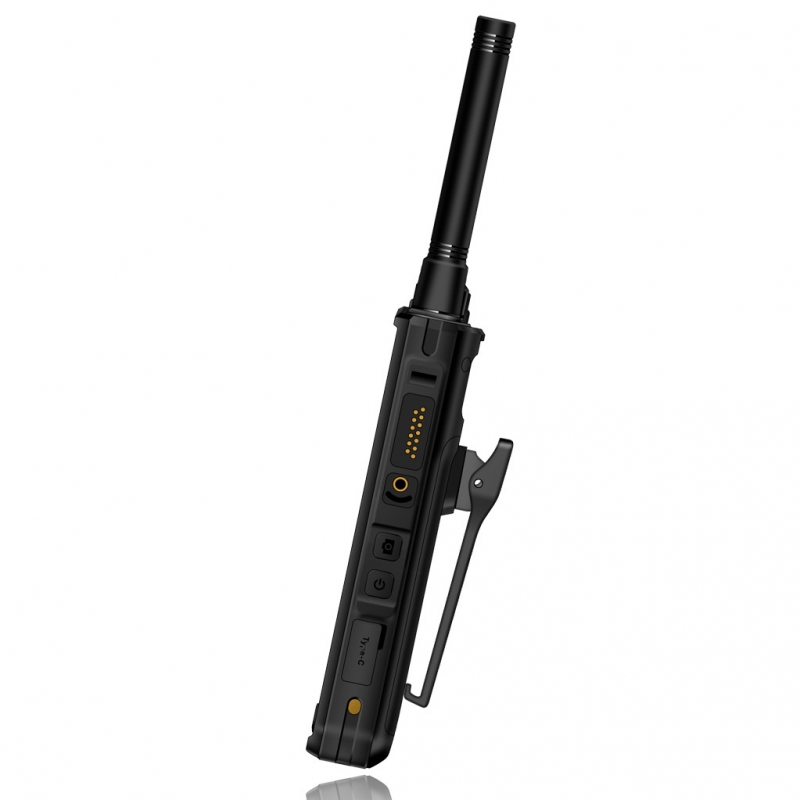

PROFESSIONAL M6 CONNECTOR ENABLES TO CONNECT WITH BODY CAMERA
Estalky E966 with M6 Connector enables to connect with external RSM,Earphone and Body Camera.
Special customized External body camera with infrared night vision function able to work in a dark envoironment easily,the connected headset and ptt button can work simultaneously and allow you to feedback and record the on-site situation in time while on duty.
QUICK SMART KEY

DMR and POC can be quickly switched through smart key,making communication smoother and work more efficient.

E966 Hybrid device

E966 lte with dmr radio





Feature Technical Description
1、HW SPEC
1.1 Main CPU & SW
CPU MTK6761 Quad-Core CPU , 2.0Ghz , Support Pin-Pin  Octa-Core CPU
Android Android 10
Language Multi-Language
1.2 Memory
RAM+ROM 2GB +16GB ( Optional 3GB + 32GB )
SD Card Up to 32GB
1.3 LCD
LCD 4"
LCD resolution 854 x 480dpi
LCD Colors 16M color IPS TFT
1.4 Touch
Touch type  &  size G+F+F, Support glove wear touch ,  480 x 800
Glass Tempered Glass
Multi-touch 5 point touch screen
1.5 Sensor
Sensor Light Sensor , G-Sensor , 3D Sensor ,  Proximity Sensor
1.6  Frequency/Bands
Network ( GSM , WCDMA , FDD , TDD ) GSM:B2/ B3 / B5 / B8
WCDMA:B1 / B2 / B4 / B5 / B8
FDD-LTE:B1/B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B20 / B28 (a&b) TDD-LTE : B38 / B39 / B40 / B41
1.7 Camera
Front& Rear Camera Back:8M with focus
Front:5M
Flash Light:real light
1.8 Wi-Fi
IEEE802.11a Yes (5G)
IEEE802.11b Yes(2.4G)
IEEE802.11g Yes(2.4G)
IEEE802.11n  Yes(2.4G&5G)
WIFI anternna Type Wi-Fi & BT Coexistence
Antenna Impedance 50Ohm
1.9  Bluetooth
Version BT v4.0 with BLE
BT2.1+ EDR ( Enhanced Data Rate )
Power Level (Max) Class 2
Operation distance (Max) 10 meters
2.0 GPS & A-GPS
GLONASS Support Yes
GPS Support Yes
AGPS Support Yes
GOS antenna Type Internal FPC antenna
2.1 Speaker & MIC
Output 2.0W
SPL 116dB
Receiver 1506
MIC Type Dual Mic With One Noise Reduction Mic
MIC Sensitivity -42dB±3
SIM card Dual Micro - SIM card
Vibrator Yes
2.2 DMR
Frequency Range  UHF400 - 470MHz ( Support VHF 136 - 174MHz )
Channel Capacity 16
Transmitting Power 0.5w/2w
Channel Spacing 12.5/25kHz( Analogue )
12.5kHz ( Digital )
2.3 Earjack Interface Type M6 Connector
2.4 Indicator LED 3-colors ( Red 、 Green 、 Blue )
3、MD
3.1 Size
Height  (  H  x  W  x  D  ) 142.5  x  72.5  x  25mm
Weight  329g
IP code IP68
Drop Test  1.5m
3.2 Key buttons
keys button Channel Knob, PTT , SOS , Power ( on/off ), Volume ( +/- ), Camera...
4、 Battery
Battery type Li-Po
Battery capacity 4500 mAh
Removable battery Yes
5、 Charge, Data Interfaces Type C
5.1 Charging
Micro USB (For Handset) Type C
Battery charging terminal (For Cradle) Support Customized Cradle
5.3 Cradle Spec
Input voltage  DC 5V / 3A
Output voltage DC 5V /  3A
DC 4.35V /  0.7A
Interface Type Type C
5.4 Phone Adaptor Spec
Input voltage AC 100 ~ 240V
Output voltage DC 5V / 2.0A
Interface Type Type C
6、 Environmental Conditions
Operating Temperature -20℃ ~ 60℃
Storage Temperature  -30℃ ~ 70℃
Humidity 20 ~ 90%
ESD Contact:  ± 8KV
Air:  ± 12KV
RoHS 6 Compliant Yes
7、 Certification and safety spec
Europe CE
American FCC
