E120

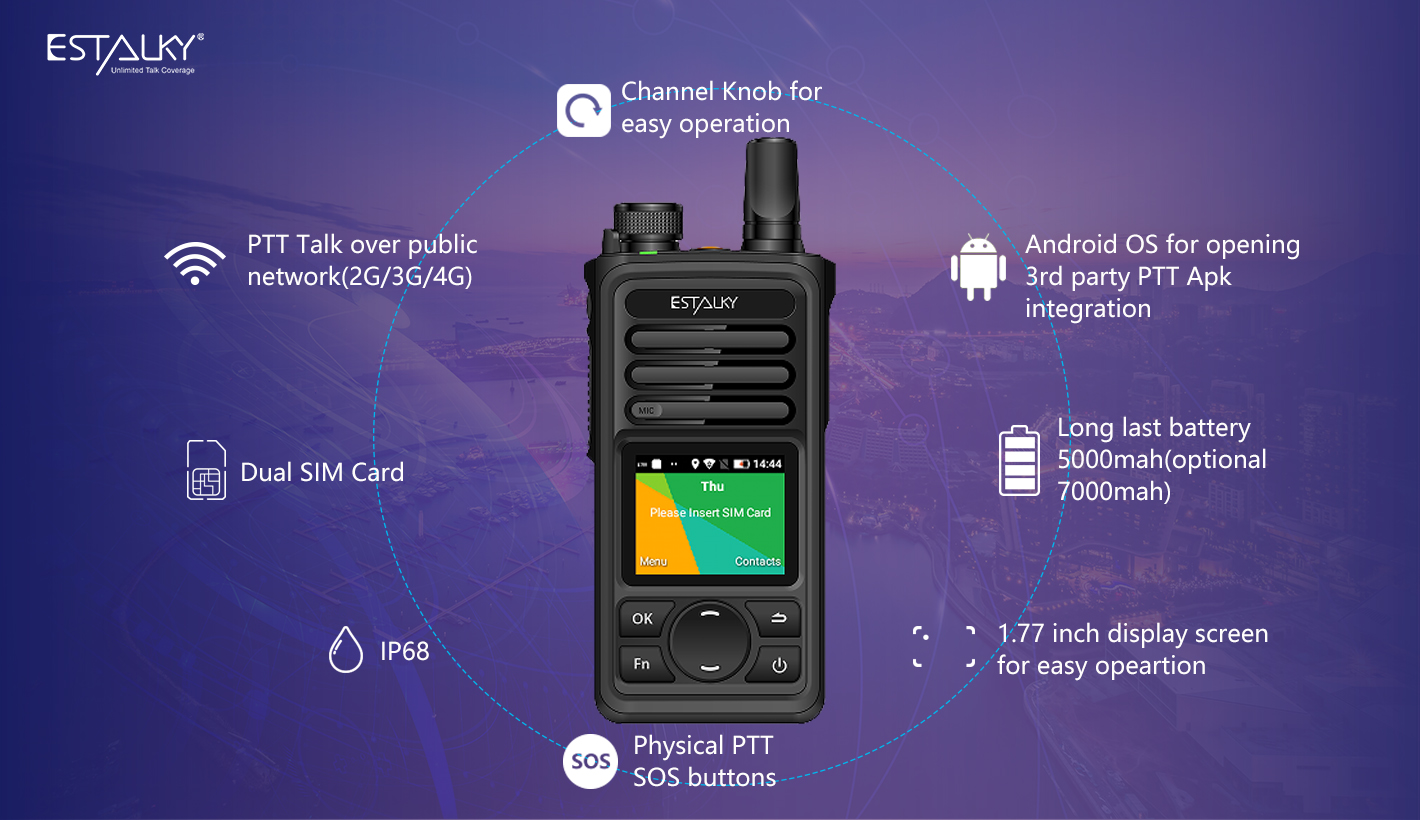

Estalky E120 Push-to-Talk over Cellular (PoC) radio presents a simple yet powerful radio designed to help business users communicate effortlessly and efficiently.  The compact body, one-handed operation is smooth and free, and the 7000mAh battery guarantees long-term working needs.. Built-in high-power 3W speakers and add AI noisy reduction chipset, no pressure for push to talk communication in noisy environments. it built witih gps, wifi, bt function to achieve fine scheduling of front-line personnel, meet the requirements of IP68 protection level, and be free from harsh environments.
Estalky E120 POC radio is a Compact and easy-to-use (PoC) solution for instant communication and  can be operated on the widely available public network to deliver instant communications at the push of a button.
It is the best choice for those engaged in supermarkets, hotels, logistics, industrial parks, urban and property management, and more.

E120 poc radio function





Feature Technical Description
1、HW SPEC
1.1 Main CPU & SW
CPU MTK8765 ,GPU 1.5Ghz
Android Android 8.1 GO
Language Multi Language
1.2 Memory
RAM+ROM 512MB+4GB(1GB +8GB optional )
SD Card 32GB
1.3 LCD
LCD 1.77 TFT
LCD resolution 128x160 RGB
LCD Colors 16M Color IPS TFT
1.4 Touch
Touch type & size None
Glass China made
Multi-touch None
1.5 Sensor
Sensor G-Sersor/Acceleration Sensor
1.6  Frequency/Bands
Network( GSM, WCDMA, FDD, TDD) EU band:
GSM: B2/B3/B5/B8

WCDMA: B1/B2/B5/B8
TD-SCDMA: B39/B34
FDD-LTE: B1 / B3 /B5/ B7 / B8 / B20 / B28 (a&b)
TDD-LTE: B38 / B39 / B40 / B41
US band:
GSM: B2/B3/B5/B8
WCDMA: B2/B4/B5
FDD-LTE: B2 / B4 / B5 / B7 / B12 / B17 / B28 ( a&b )
1.7 Camera
Front& Rear Camera None
1.8 Wi-Fi
IEEE802.11a Yes (5G)
IEEE802.11b Yes(2.4G)
IEEE802.11g Yes(2.4G)
IEEE802.11n  Yes(2.4G&5G)
WIFI anternna Type Wi-Fi & BT Coexistence Internal  antenna
1.9  Bluetooth
Version BT V4.0 with BLE / BT2.1 + EDR ( Enhanced Data Rate )
Power Level (Max) Class 2
Operation distance (Max) 10 meter
2.0 GPS & A-GPS
GLONASS Support None
GPS Support Yes
AGPS Support Yes
BDS Yes
2.1 Speaker & MIC
Output 3W speaker
SPL 106db under AI noisy reduction
Receiver 1506
MIC Type Single Pole Mic
MIC Sensitivity -42dB±3
SIM card TWO Nano-SIM card
Vibrator None
2.2 USB
USB type  TYPE C
USB  Micro USB2.0
Cable length 1.0m

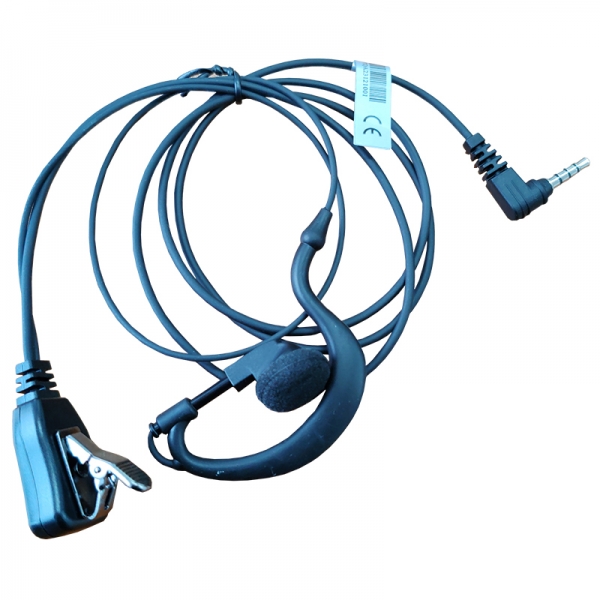

2.3 Earjack Interface Type 3.5mm PTT
2.4 Indicator LED 3-colors(Red, Green, Blue)
3、MD
3.1 Size
Height ( H * W * D ) 117 x 60 x 29.2mm
Weight  261g
IP code IP68
Drop Test  1.8m
3.2 Key buttons
keys button PTT Key / Volume UP / Down Key / Function Key / SOS Key / Power Key/Channel knob
4、 Battery
Battery type Li-Po

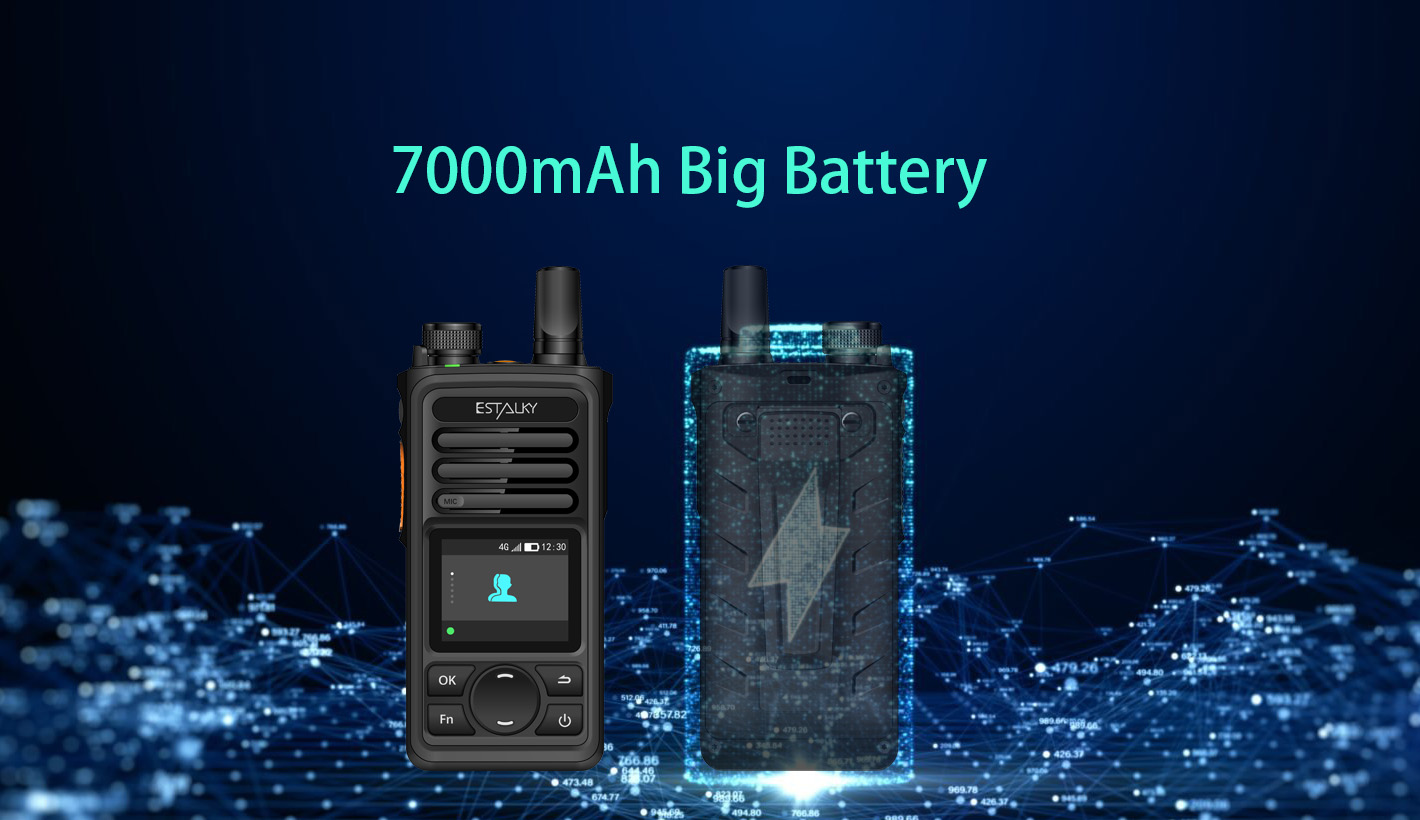

Battery capacity 7000 mAh (Optional 5000mah) with MSDS, UN38.3.IEC62133
Removable battery Yes
5.1 Charging
Micro USB ( For Handset ) Yes
Battery charging terminal(For Cradle) Cradle charging
5.2 Cradle Spec
Input voltage  DC 5V/2.0A
Output voltage DC 5V/2.0A
Interface Type TYPE-C Connector (Replace old version Micro-USB)
5.3 Phone Adaptor Spec
Input voltage AC 100-240V, 50 / 60Hz, 0.3A
Output voltage DC 5V / 2.0A
Interface Type Standard USB
6、 Environmental Conditions
Operating Temperature  -20℃ ~ 60℃
Storage Temperature   -30℃ ~ 70℃
Humidity 20% ~ 90%
ESD  Contact:  ±8KV
Air:  ±12KV
ROHS 6 Compliant Yes
7、 Certification and safety spec
Europe CE
American FCC
