E610

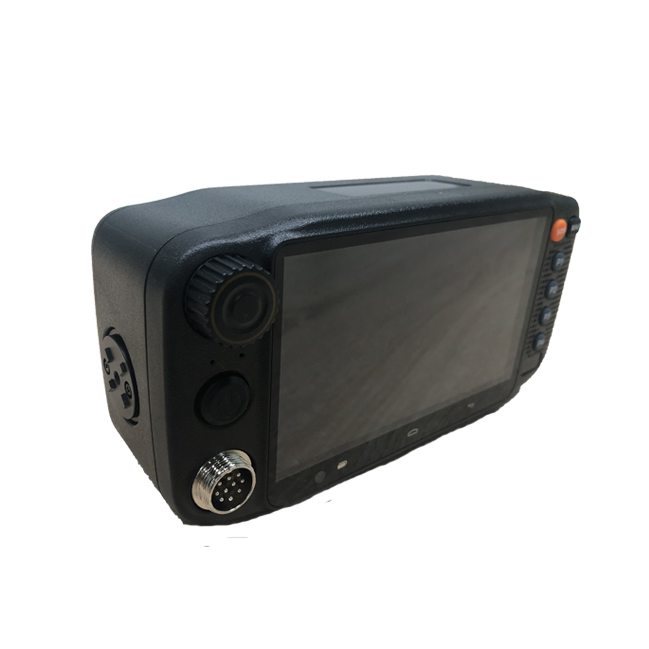

Estalky E610 is a 4G / WIFI Android mobile network radio support DMR function designed for use in a vehicle or as a base station.
The device has a large 5.5” touch screen, four programmable buttons – to assist in easy channel selection between talk groups and a dedicated emergency button which increases user safety.
Other features include the external DMR/LTE antenna for better signal, and external Hand mic interface,support Digital hand microphones



E610 Mobile Radio
5.5INCH VIEWING ANGEL,CLEAR AND LOUD VOICE
Large Screen for easy operation,Clear GPS Location, φ50mm 4Ω 5W,clear and loud radio grade audio,One-click design MAP,conveient for quick viewing
DB9 INTERFACE


Support SW Download,

Upgrade,External USB Camera,

3.3V Uart, External Speaker.
EXTERNAL DMR & LTE ANETENNA
DMR and LTE antennas can be connected externally,not limited by enviroment and distance,and the signal remians in good condition.
EXTERNAL HAND MIC INTERFACE

4Pin GX16 Hand Mic,Can be well fixed on the machine, not easy to fall off.
Feature Technical Description
1、HW SPEC
1.1 Main CPU & SW
CPU MTK6739
Android Android8.1
OS Language Korean,  Japanese  , English , Chinese...
1.2 Memory
RAM+ROM 2GB +16GB
SD Card 64GB
1.3 LCD
LCD TFT 5.5"
LCD resolution 1280 X 720 dpi WVGA
LCD Colors 16M color IPS TFT
1.4 Touch
Touch type  &  size 5.5"  /  Capacitive
Glass Coning generation 3
Multi-touch 5 point touch screen
1.5 Sensor
Sensor G-Sensor/Gyroscope/Compass
1.6  Frequency/Bands
Network  (  GSM . WCDMA , FDD , TDD) EU Version:
GSM:850MHz / 900MHz / 1800MHz / 1900MHz
WCDMA:B1 / B2 / B5 / B8
TD-SCDMA:B34 / B39
CDMA2000:BC0
LTE-TDD:B38 / B39 / B40 / B41
LTE-FDD:B1/ B3/ B7 / B8 / B20 / B28 ( A&B )
US Version:
GSM:850MHz / 1900MHz
WCDMA:B1 / B2 / B4 / B5( B19 )
LTE-FDD:B1 / B2 / B4 / B5 ( B19 ) / B7 / B12 ( B17 ) / B13 / B28
DMR:UHF 400-470MHz
1.7 Camera
Front& Rear Camera Front:200M
1.8 Wi-Fi
IEEE802.11a Yes (5G)
IEEE802.11b Yes(2.4G)
IEEE802.11g Yes(2.4G)
IEEE802.11n  Yes(2.4G&5G)
WIFI anternna Type Wi-Fi & BT Coexistence
Internal  FPC antenna
1.9  Bluetooth
Version BT v4.0 with BLE BT2.1 + EDR ( Enhanced Data Rate )
Power Level (Max) Class 2
Operation distance (Max) 10 meter
2.0 GPS & A-GPS
GLONASS Support Yes
GPS Support Yes
AGPS Support Yes
2.1 Speaker & MIC
Output Φ50mm,4Ω,5W
SPL 106dB
Receiver 1506
MIC Type Dual MIC,  DMR POC Use microphone independently
MIC Sensitivity -42dB±3
SIM card One Push NANO SIM Card
Vibrator Yes
2.2 Connector
Connector Interface DB9 Connector
2.3 Earjack
Interface Type
No
2.4 Indicator LED 3-colors  ( Red 、 Green 、 Blue )
3、MD
3.1 Size
Height ( H *  W  * D  ) 190 x 93 x 66mm
Weight  486g
IP code IP54
Drop Test  Standard
3.2 Key buttons
keys button PTT,SOS, Channel , Power, Volume...
4、 Battery
Battery Type No
5、 Charge,
Data Interfaces
DP9
5.1 Peripheral Inerface
External Hand mic interface 4pin GX16 Hand mic
POWER SUPPLY interface 12V input voltage
5.3 DMR
Channel capacity 16
Channel spacing 12.5 / 25 kHz  ( analogue )
12.5 kHz  ( digital )
Transmitting Power 0.5W/2W
Operation distance 2km (Max)
Frequency Stability  ± 0.5ppm
Sensitivity 0.22 mV ( Typical )
6、 Environmental Conditions
Operating Temperature  -20℃ ~ 80℃
Storage Temperature   -30℃ ~ 90℃
Humidity  20 ~ 90%
ESD  Contact:  ± 6KV
Air:  ±8KV
RoHS 6 Compliant Yes
7、 Certification and
safety spec
Europe CE
American FCC
